StarTech.com 1 ft Coax HD15 VGA to 5 BNC RGBHV Monitor Cable

Manufacturer:StarTech.com
Manufacturer Part Number:VGABNCMF1
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:VGABNCMF1
Product Name:1 ft Coax HD15 VGA to 5 BNC RGBHV Monitor Cable
Marketing Information:

The VGABNCMF1 1-foot Coax HD15 VGA to 5 BNC RGBHV Adapter Cable features an HD15 VGA (male) connector and 5 BNC (RGBHV) (female) connectors, allowing you to connect your existing BNC video source to a VGA distribution amplifier or PC.

The cable can also be used with a VGA out signal, breaking out to 5 BNC female connectors that can be used with a 5 BNC (M-M) cable for use with a BNC monitor/display.

Packaged Quantity:1
Packing:Bagged
Product Type:Video Cable

Cable Type:Coaxial
Cable Length:1 ft

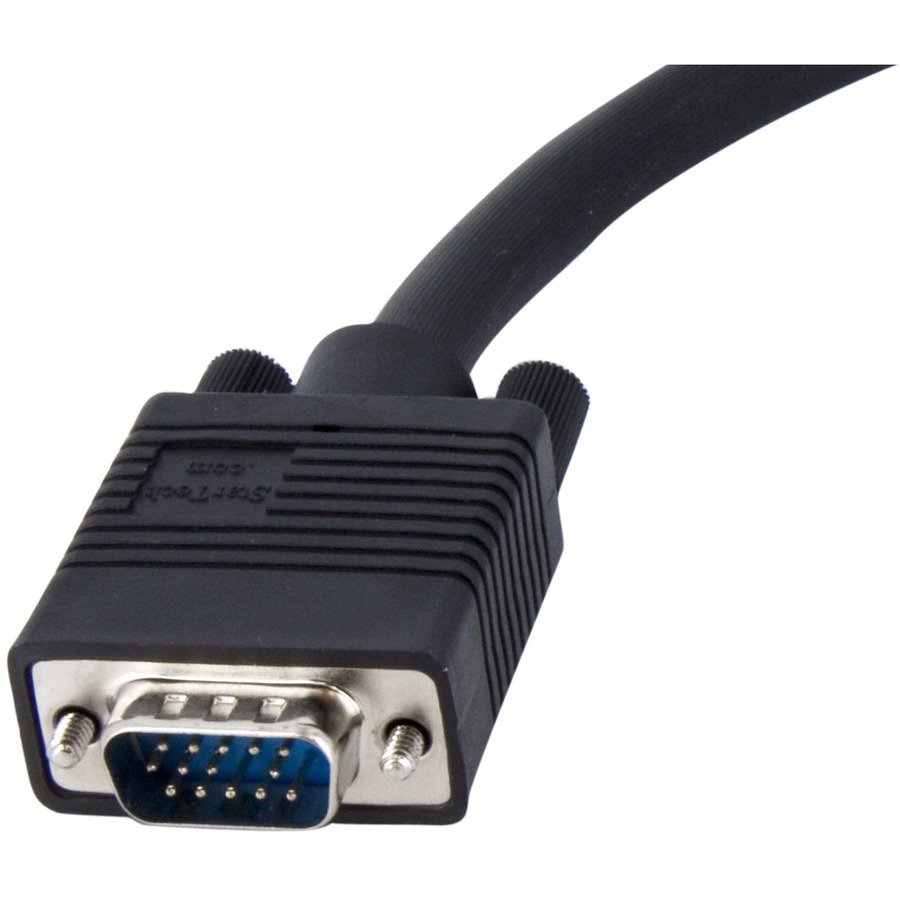

Connector Type on First End:HD-15 – Male
Connector Gender on First End:Male
Connector on First End Details:1 x 15-pin HD-15 – Male

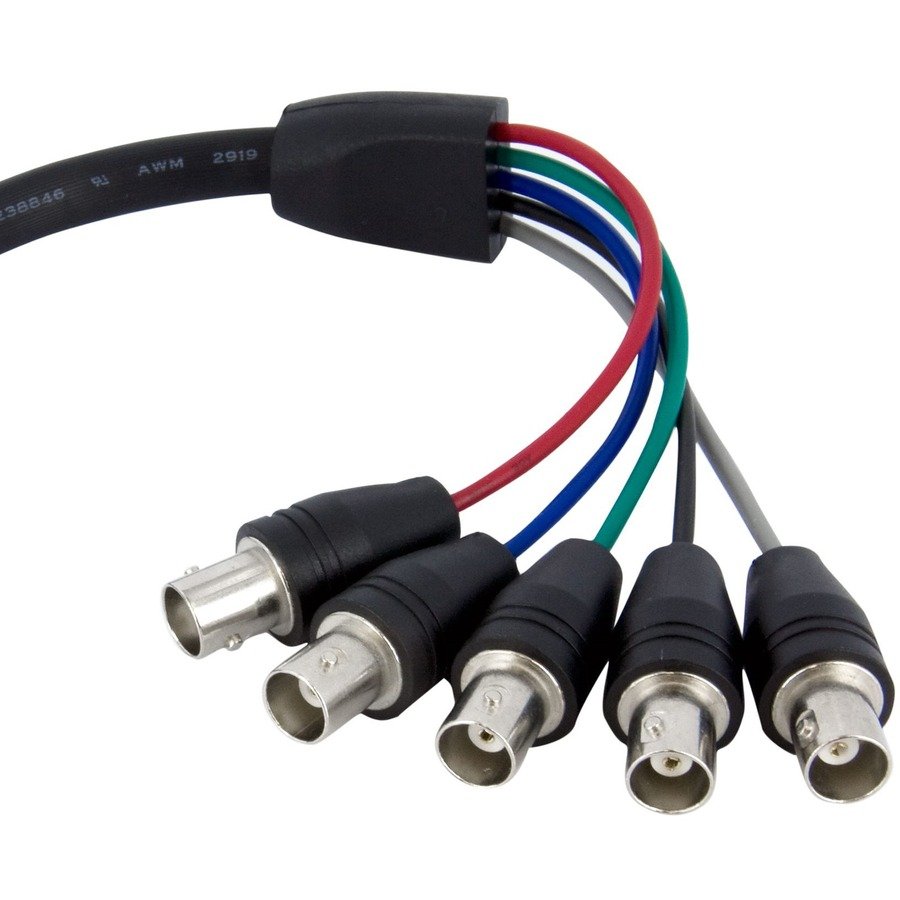

Connector Type on Second End:BNC Video – Female
Connector Gender on Second End:Female
Connector on Second End Details:5 x BNC Video – Female
Connector Plating:Nickel
Conductor:Copper
Device Supported:

• PC
• Distribution Amplifier
• Monitor
• Video Device
• Projector

American Wire Gauge:28 AWG

Product Color:Black
Jacket Material:Polyvinyl Chloride (PVC)
Weight (Approximate):0.22 lb

Certifications & Standards:

CMG Rated

Environmentally Friendly:Yes
Country of Origin:China

Limited Warranty:Lifetime
