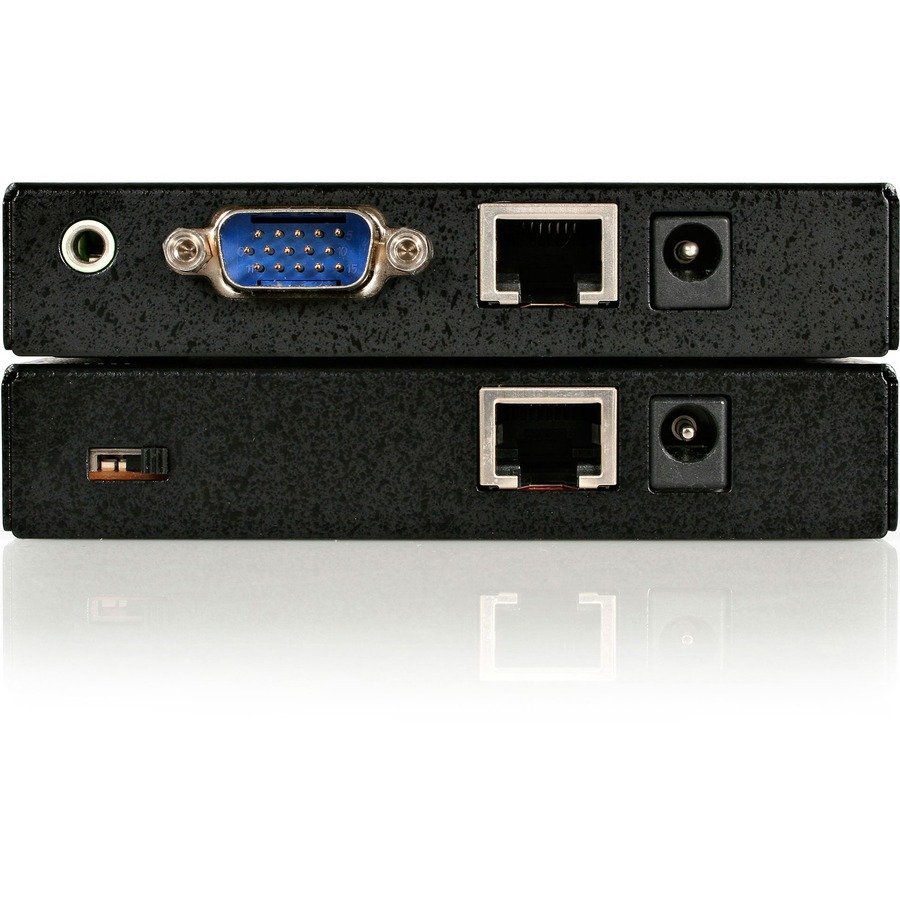

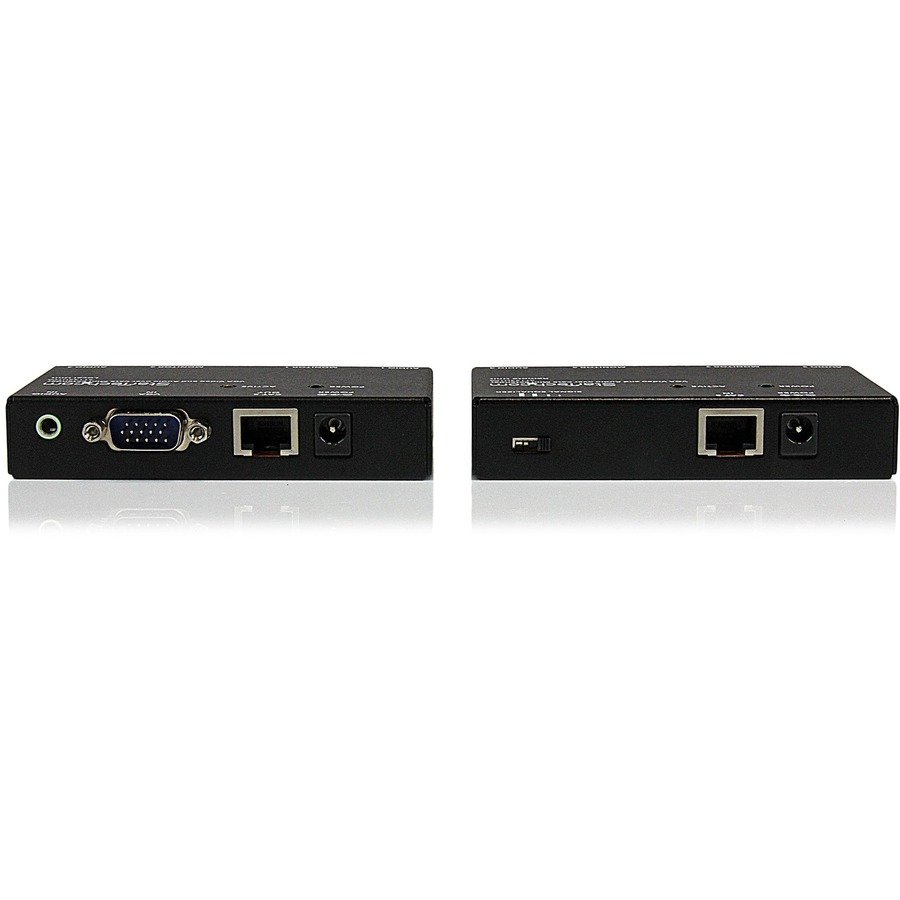

StarTech.com VGA Video Extender over Cat 5 with Audio

Manufacturer:StarTech.com
Manufacturer Part Number:ST122UTPA
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:VGA Video Extender over Cat 5 with Audio
Marketing Information:

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.

The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that’s perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Packaged Quantity Condition:Kit
Product Type:Video Extender Transmitter/Receiver

Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:4
Maximum Operating Distance:150 ft

Graphics Modes:XGA
Maximum Video Resolution:1440 x 900

Network (RJ-45):Yes
VGA In:Yes
VGA Out:Yes
Number of Network (RJ-45) Ports:2
Number of VGA Inputs:2
Number of VGA Outputs:2

Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 5

Product Color:Black
Transmitter Height:0.80″
Transmitter Width:3.30″
Transmitter Depth:2.40″
Form Factor:Desktop
Transmitter Weight (Approximate):6.40 oz

Package Contents:

• 1 x Local VGA Extender Unit
• 1 x Remote VGA Extender Unit
• 1 x Mounting Bracket for Receiver (w/ screws)
• 2 x Sets Rubber Feet
• 2 x Power Adapter
• 1 x Instruction Manual

Additional Information:

• Allows users to make use of existing Ethernet infrastructure to extend VGA displays and audio
• Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment
• Includes mounting brackets for versatile mounting options such as a wall, desk or cabinet, for a clean and manageable solution

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes

Limited Warranty:2 Year
