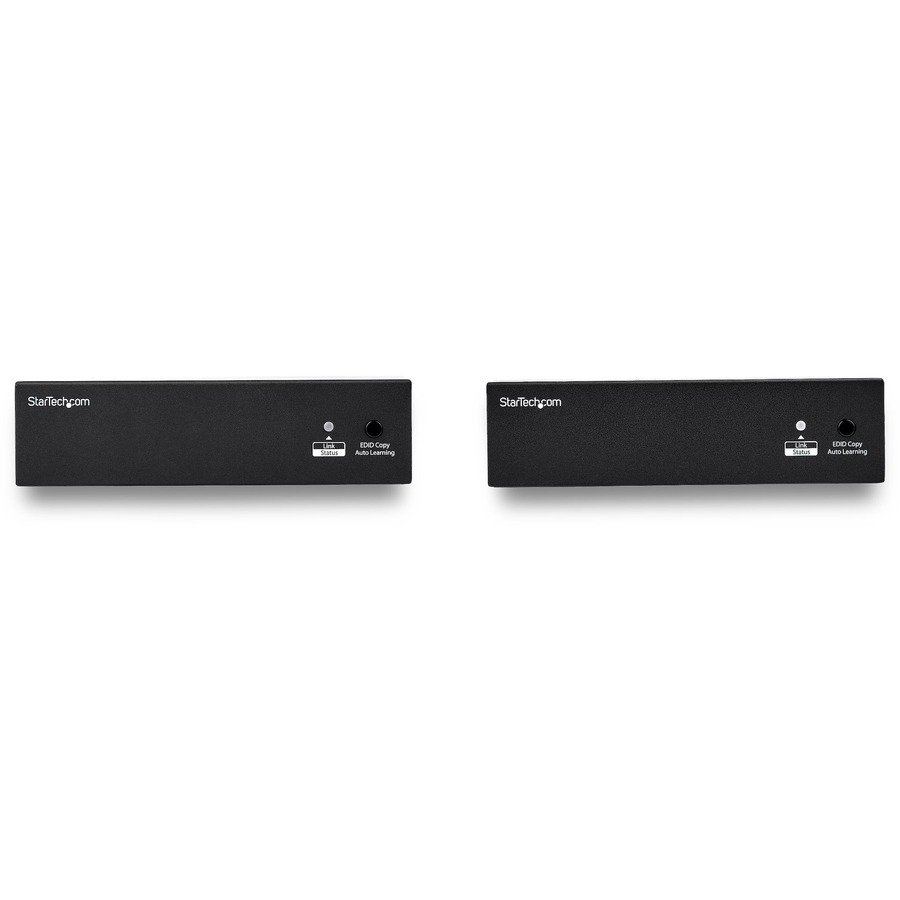

StarTech.com Dual HDMI over CAT6 Extender – 1080p over CAT6 or CAT5e

Manufacturer:StarTech.com
Manufacturer Part Number:ST222HDBT
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:ST222HDBT
Product Name:Dual HDMI over CAT6 Extender – 1080p
Marketing Information:

This HDMI® over CAT6 extender lets you extend two HDMI sources up to 90 m (295ft.), to individual HDMI displays over a single CAT6 cable. Designed for a simple, tidy setup, the extender also supports bi-directional IR control for added flexibility.

Dual source support

Reduce the need for additional equipment and cables, by extending two HDMI connections with a single CAT6 cable. Running only onecable can save cost on installation or enable you to extend two HDMI signals using an existing cable run. You can also use this 1080p HDMI extender to run separate video signals to the same display, for mission critical digital signage applications where if one signal goes down, the other can easily be swapped in it’s place.

Bi-directional control

With bi-directional IR control, you can control your devices from either end of theextension, such as a Blu-ray™ player and laptop on one end and two TV displays on the other. Theextender includes an IR kit with discreet dongles that easily connect to both your transmitter and receiver, enabling you to remotely control any device you choose from either side of your extension.

Simplified setup

The simplicity of one-cable setup avoids the hassle of running multiple cables, while also reducing potential failure points. The included mounting hardware offers professional mounting options ideal for public spaces such as offices or auditoriums.

The TAA compliant ST222HDBT is backed by a 2-year StarTech.com warranty and free lifetimetechnical support.

Packaged Quantity Condition:Kit
Product Type:Video Extender Transmitter/Receiver

Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:295.28 ft

Graphics Modes:Full HD
Maximum Video Resolution:1920 x 1080

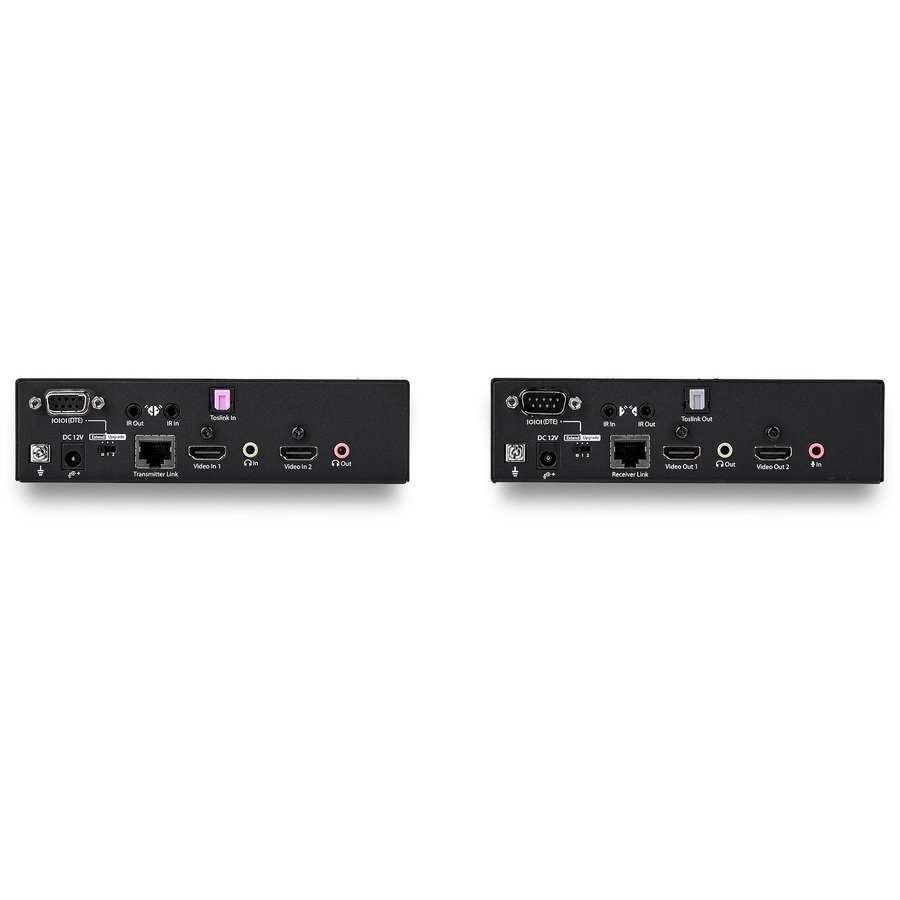

Network (RJ-45):Yes
HDMI In:Yes
HDMI Out:Yes
Serial Port:Yes
Number of Network (RJ-45) Ports:2
Number of HDMI Inputs:2
Number of HDMI Outputs:2

Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6

Transmitter Height:1.70″
Transmitter Width:5.10″
Transmitter Depth:6.20″
Receiver Height:1.70″
Receiver Width:5.10″
Receiver Depth:6.20″
Form Factor:Desktop
Transmitter Weight (Approximate):5.29 lb
Receiver Weight (Approximate):5.29 lb

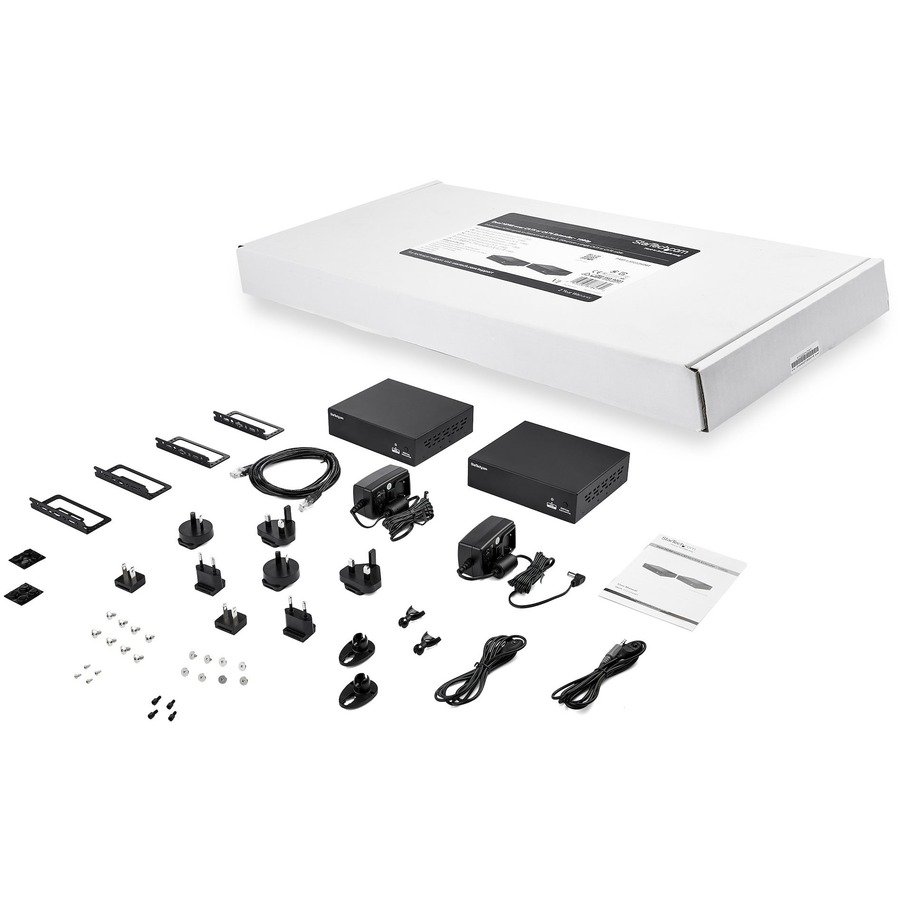

Package Contents:

• 1 x HDMI Transmitter
• 1 x HDMI Receiver
• 2 x Universal Power Adapters (NA/JP, EU, UK, ANZ)
• 2 x Sets of Mounting Brackets
• 1 x IR Blaster
• 1 x IR Receiver
• 1 x CAT5 Cable
• 8 x Rubber Feet
• 1 x User Manual

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes

Limited Warranty:2 Year
