StarTech.com HDMI over IP Extender with Video Compression – HDMI over CAT6 Extender – 1080p

Manufacturer:StarTech.com
Manufacturer Part Number:ST12MHDLNHK
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:HDMI Over IP Extender with Video Compression – 1080p
Marketing Information:

ExtendandcontrolHDMI videooveryour existingLANtocreateastate-of-the-artnetworkofvideodisplaysin a variety ofenvironmentswhere digital signage is required.

Ideal for Universities, Offices, and Restaurants

Reliably Extend Compressed HDMI VideowithBandwidth Efficiency

This extender uses advanced compression to distribute high-qualityHDMI videoover yournetwork, with minimal bandwidth requirements.

With advanced compression technology, broadcasting your video signal requires only 6 – 12 Mbpsof local area network bandwidth, when in operation for each kit.

Flexible & ScalableDeployment Options

TheHDMI over LANextenderoffers many configurations to accommodate your set up.

This HDMI video extender provides four ways to control your video network configurations.

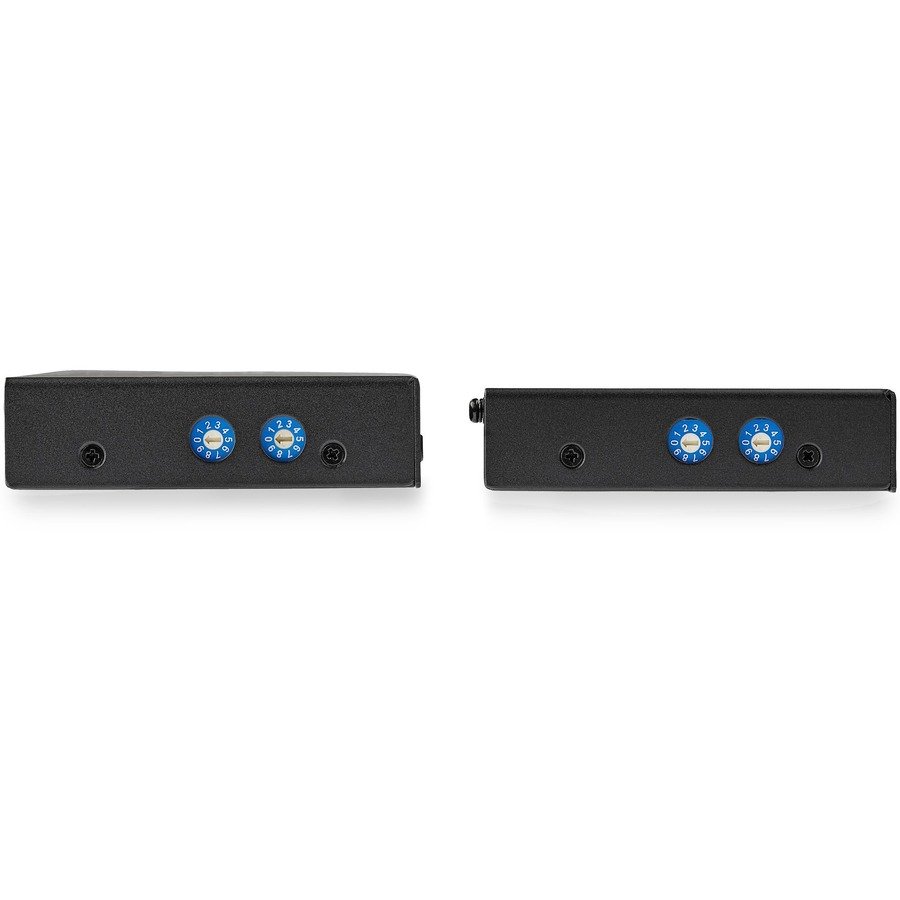

• Rotary DIP switches located on the Tx and Rx
• Your computer connected to the transmitter or receiver via a serial cable
• Over IP using any device equipped with a browser on the same local area network(i.e. tablet, laptop, smartphone)
• Infrared (IR)remote control using the includedreceiver

ComprehensiveProduct Testing&ExpertTechnical Support

StarTech.comconducts thoroughcompatibility and performancetestingonallour productstoensure we are meeting orexceeding industry standardsand providinghigh-quality products to our customers. OurlocalStarTech.comTechnicalAdvisorshave broad product expertiseandwork directly with StarTech.comEngineers toprovide support for our customersboth pre and post-sales.

Packaged Quantity Condition:Kit
Product Type:Video Extender Transmitter/Receiver

Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:164.04 ft

Graphics Modes:Full HD
Maximum Video Resolution:1920 x 1080

Network (RJ-45):Yes
HDMI In:Yes
HDMI Out:Yes
Number of Network (RJ-45) Ports:2
Number of HDMI Inputs:1
Number of HDMI Outputs:1

Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6

Product Color:Black
Transmitter Height:1.10″
Transmitter Width:7″
Transmitter Depth:12.20″
Receiver Height:1.10″
Receiver Width:7″
Receiver Depth:12.20″
Form Factor:

• Rack-mountable
• Desktop

Transmitter Weight (Approximate):7.05 lb
Receiver Weight (Approximate):7.05 lb

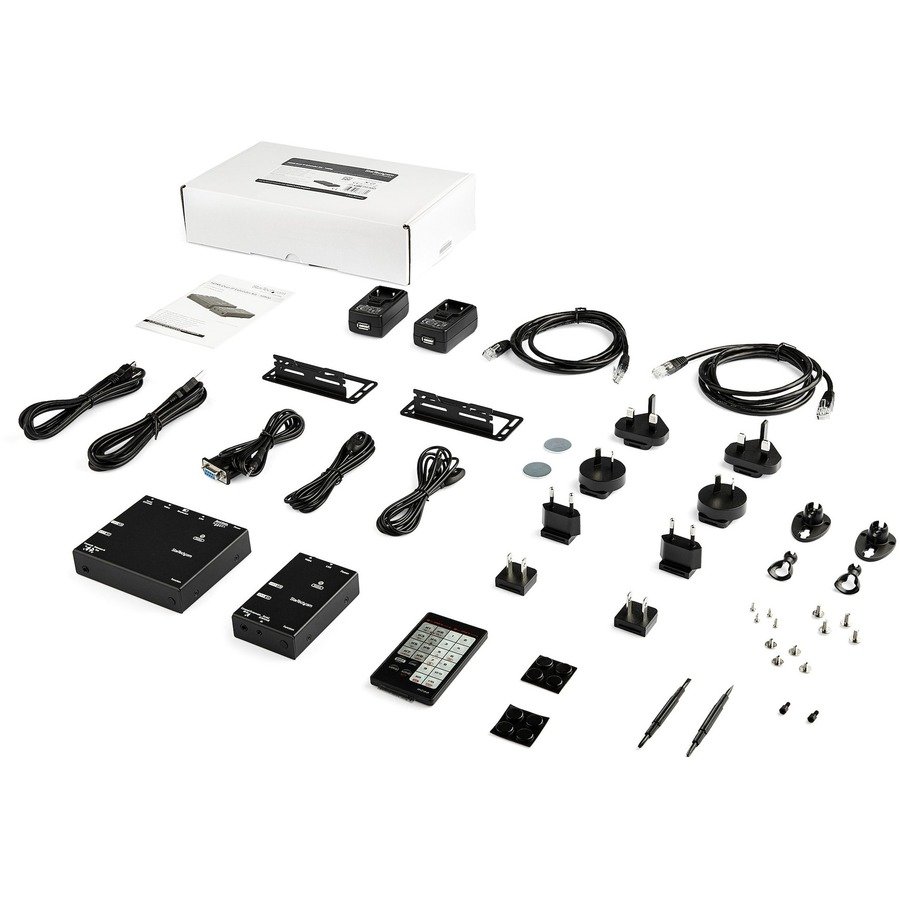

Package Contents:

• 1 x HDMI Over IP Transmitter
• 1 x HDMI Over IP Receiver
• 2 x Universal Power Adapters (NA, EU, UK, ANZ)
• 2 x Mounting Brackets
• 2 x CAT5 Cables
• 1 x Plastic Screwdriver
• 1 x IR Remote Control
• 2 x USB-A to Mini USB-B Cable
• 1 x DB9 to 2.5 mm Serial Adapter Cable
• 1 x IR Blaster
• 1 x IR Receiver
• 8 x Rubber Feet
• 1 x Instruction Manual

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes

Limited Warranty:2 Year
